ZOOM LION SCISSOR LIFTS ZS0607HD
Max. Working Height: 7.8m
Platform Capacity: 230kg
Weight: 1425kg

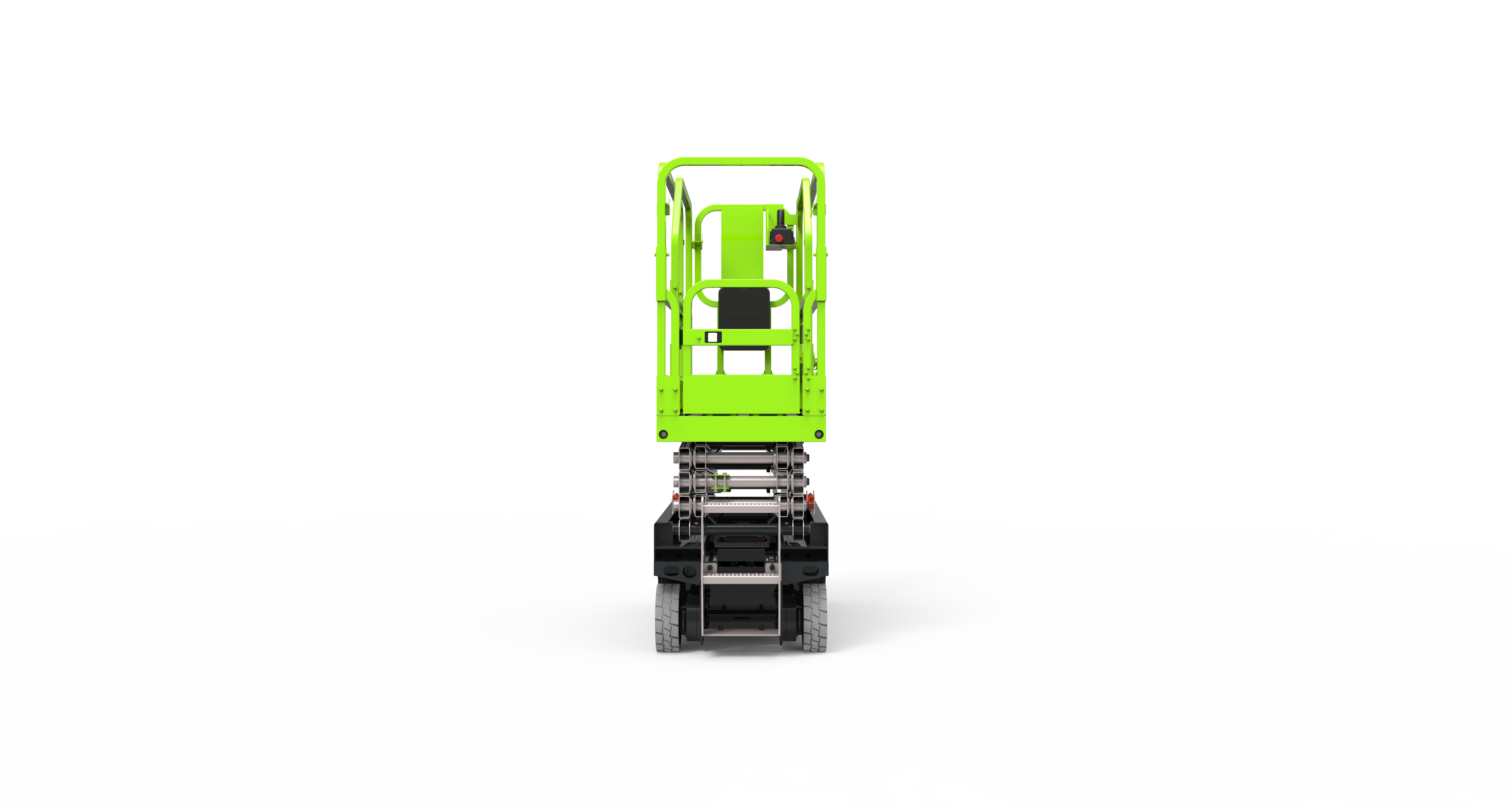

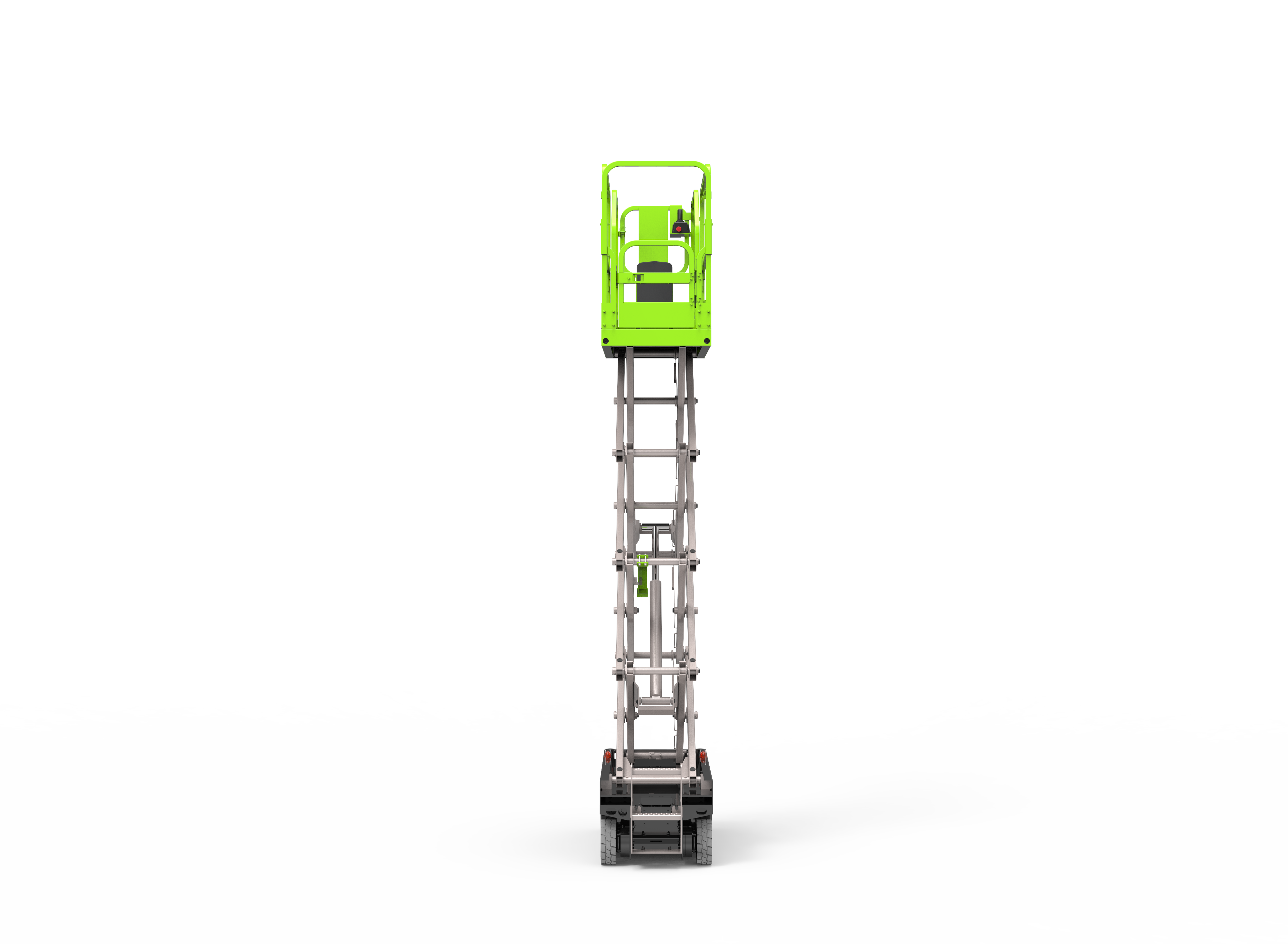

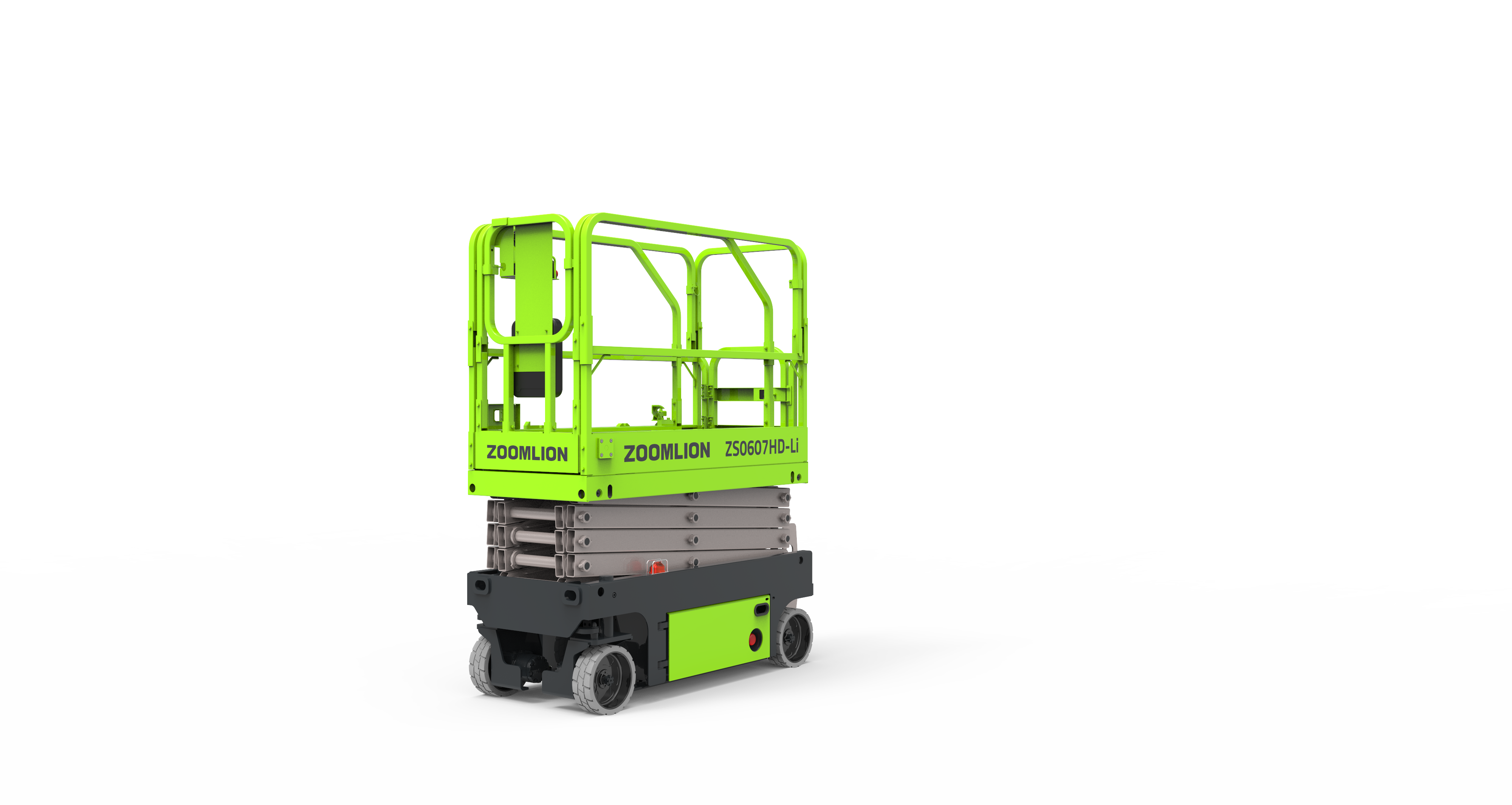

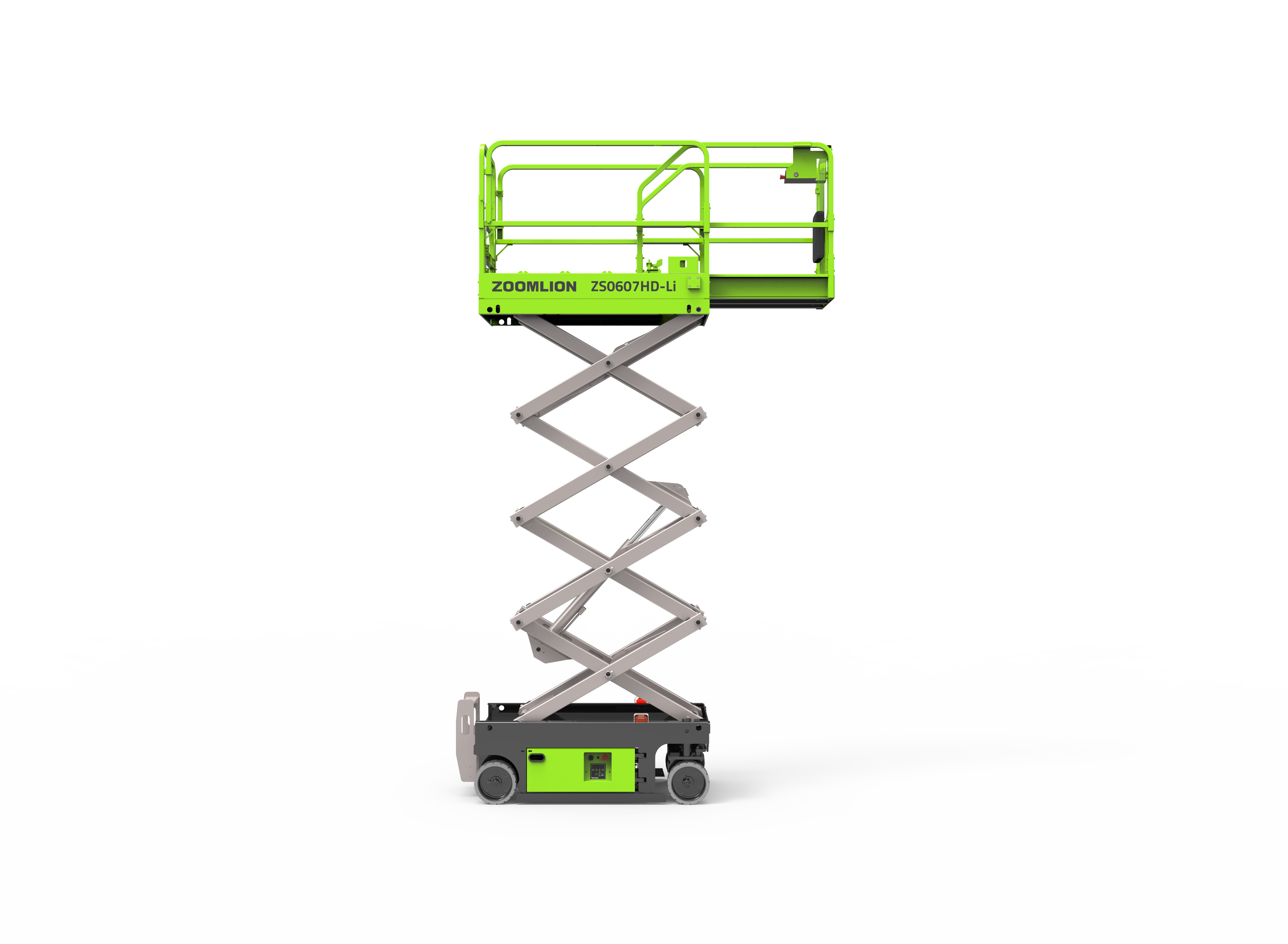

Equipment Gallery
Description
Cost Effectiveness
- Optimized design ,increases 20% more duty cycles with longer runtime.
- Precision control for stable operation.
- Large ground clearance (Pothole Protection retracted), great trafficability
Easy Maintenance & Service
- Common components and modular design, easy to maintenance
- Bilateral swing-out trays (battery & hydraulich), simple to service
- Robust & build to last, reliable and safe
Technical Specifications
Model Number
ZS0607HD
Year of Manufacture
2024
Overall Length (mm)
1850.00
Overall Width (mm)
760.00
Overall Height (Rails Up)
2200.00
Overall Height (Rails Down)
1790.00
Platform Size
1650x740
Ground Clearance (Stowed/Raised)
60/16
Wheelbase
1370.00
Turning Radius (Inside/Outside)
1600.00
Load Capacity (Kg)
230.00
Max. Working Height
7.8 m
Max. Platform Height
5.8 m
Travel Speed (Stowed)
3.50 km/h
Travel Speed (Raised)
0.80 km/h
Up/Down Speed
31/40 sec
Battery Type
Lithium-ion
Battery Voltage (v)
24
Battery Capacity (Ah)
210
