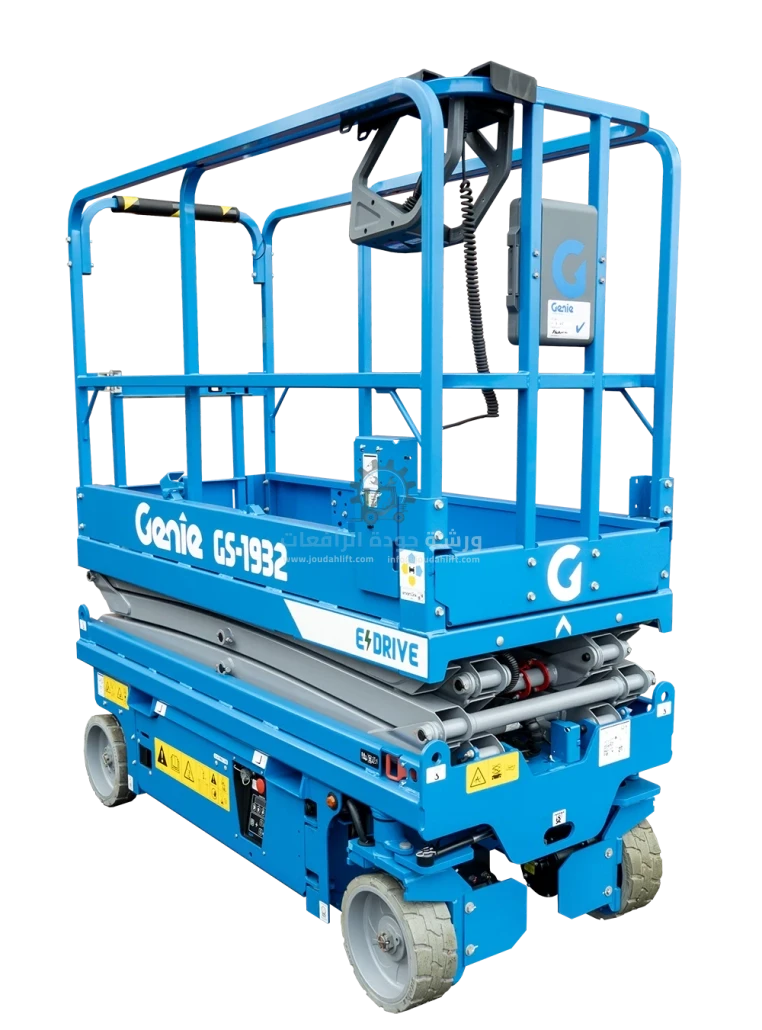

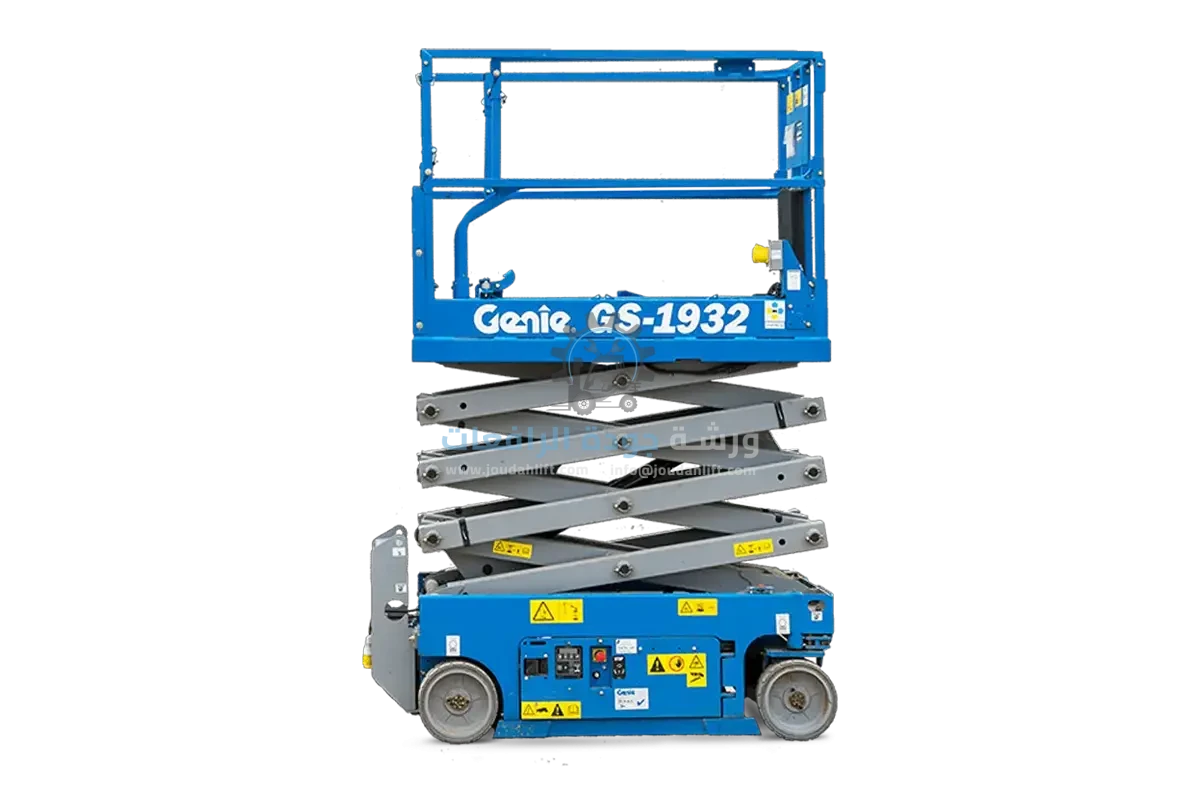

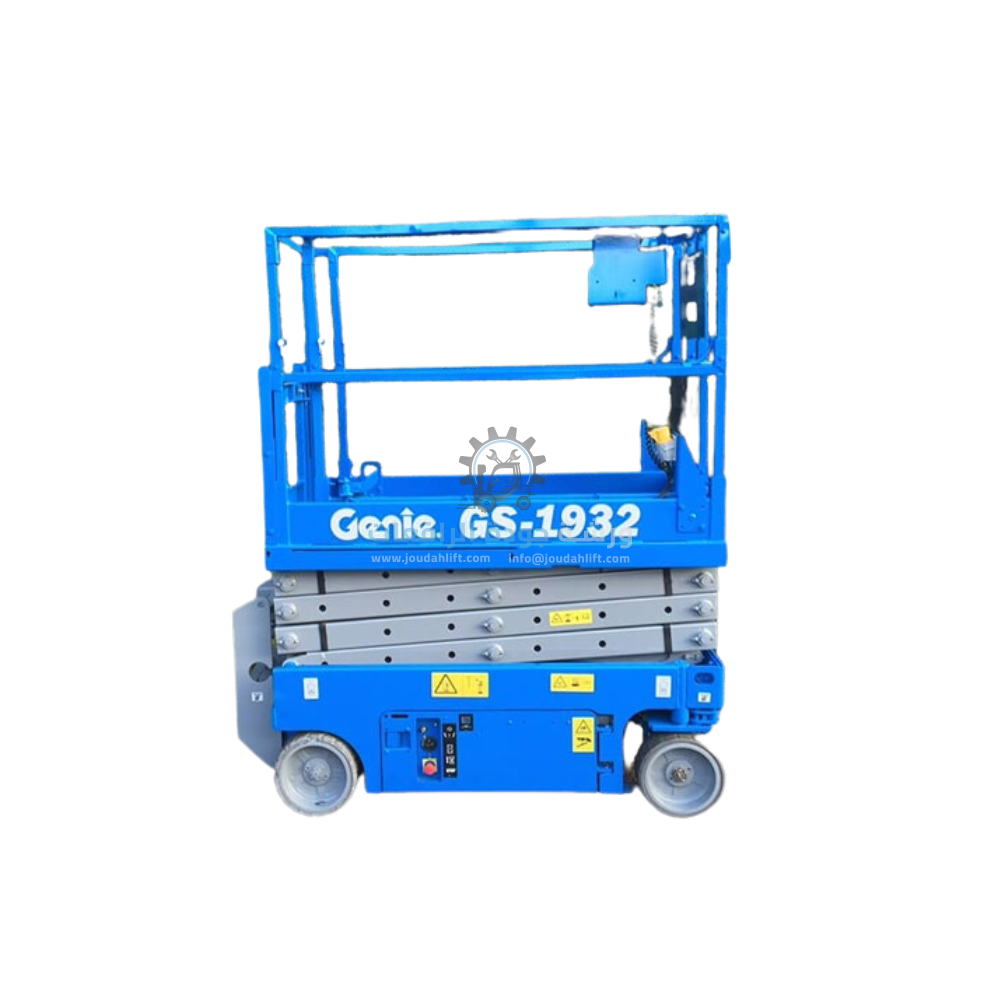

RENTAL GENIE SCISSOR LIFT MODEL: GS-1932
- Working height: 7.79 m
- Platform height: 5.79 m
- Lift capacity: 227 kg
Equipment Gallery
Description
Technical Specifications
Manufacturer
Genie
Model Number
GS-1932
Working height maximum
7.79 m
Platform height maximum
5.79 m
Platform length (extended)
2.54 m
Platform length (retracted)
1.63 m
Slide-out platform extension
0.91 m
Platform width (inside)
0.74 m
Guardrail height
1.10 m
Toeboard height
0.15 m
Stowed height (fixed rails)
2.00 m
Stowed height (folding guardrails)
2.11 m
Stowed height (rails folded)
1.75 m
Stowed length
1.83 m
Stowed length (extended)
2.74 m
Width
0.81 m
Wheelbase
1.32 m
Ground clearance (centre)
0.06 m
Ground clearance (pothole guards deployed)
0.02 m
Maximum platform occupancy (indoor)
2
Maximum platform occupancy (outdoor)
1
Lift capacity
227 kg
Drive speed (stowed)
4.0 km/h
Drive speed (raised)
0.8 km/h
Gradeability
30%
Turning radius (outside)
1.55 m
Raise speed
16 sec
Lower speed
25 sec
Power source
24 V (four 6 V 225 Ah batteries)
Hydraulic system capacity
14.2 L
Weight
1500 kg
