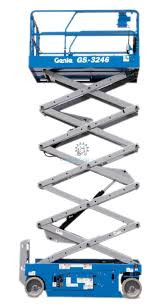

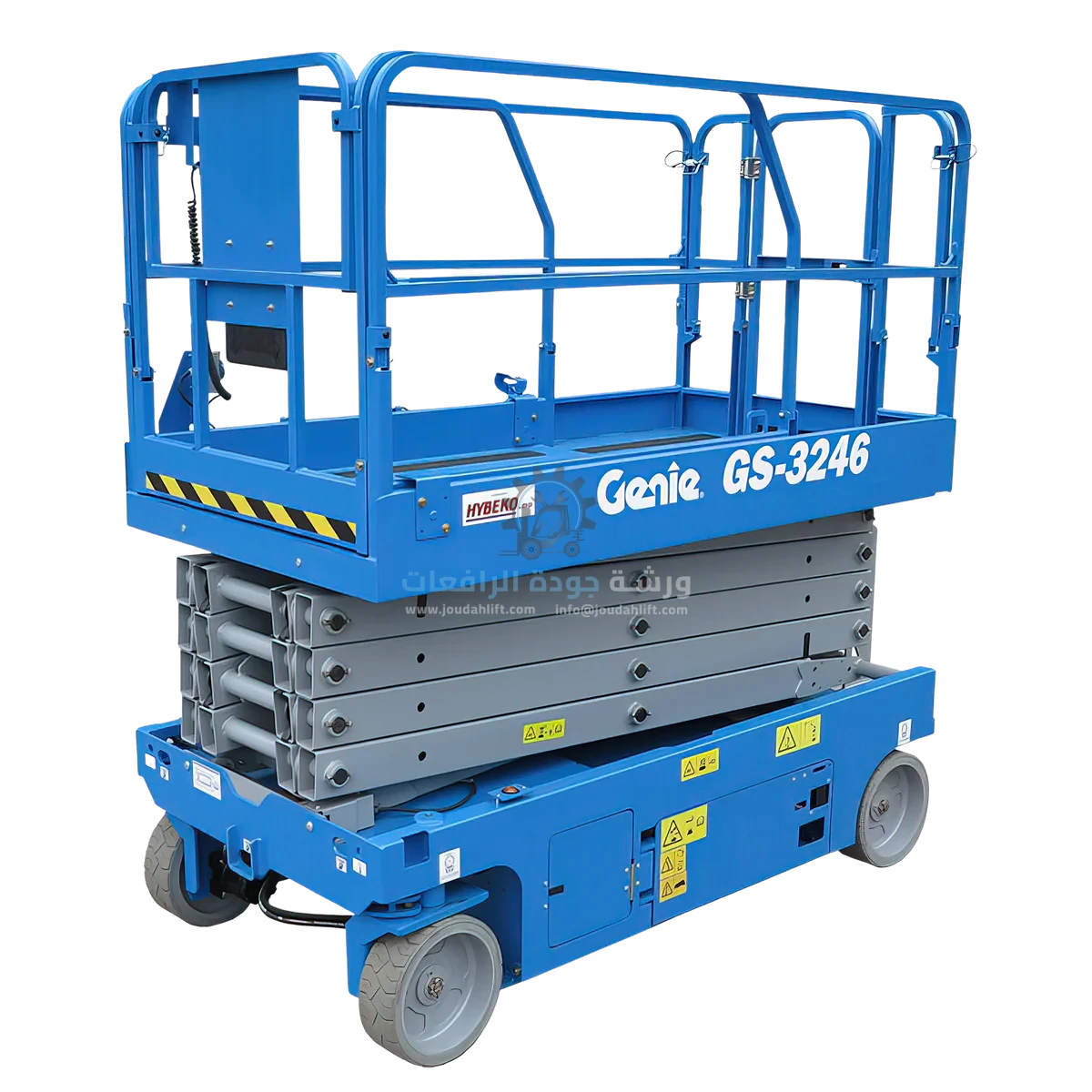

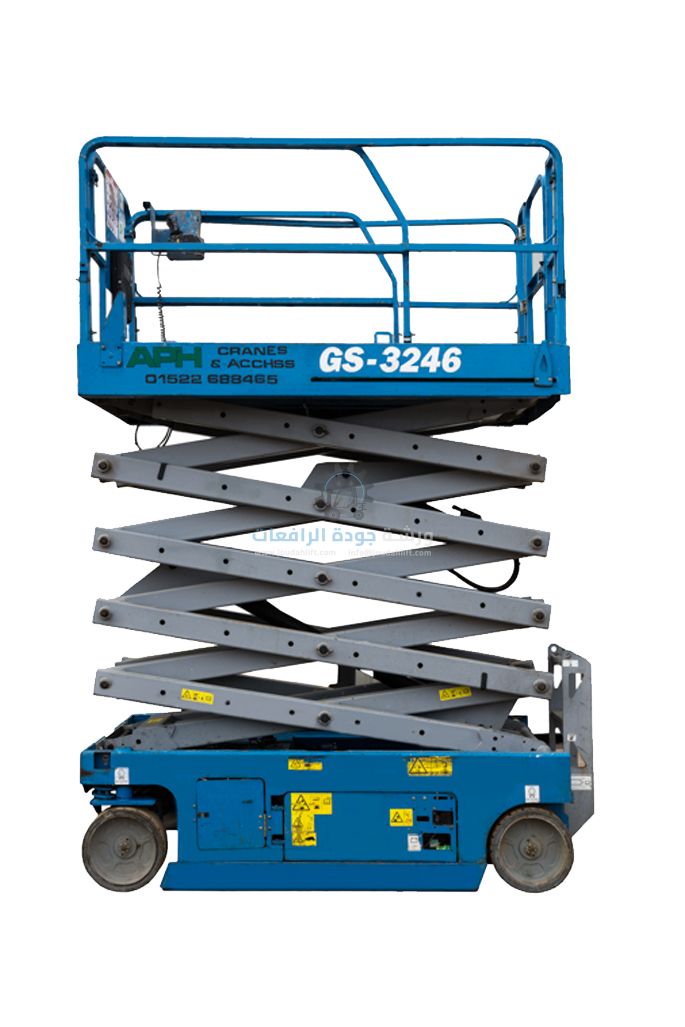

RENTAL GENIE GS-3246 ELECTRIC SCISSOR LIFT
Genie GS-3246 electric scissor lift offers reliable indoor and outdoor access with a working height of up to 11.78 meters. Its compact design and non-marking tires make it ideal for warehouses, maintenance, and construction projects. Features include a spacious platform, slide-out extension deck, and driveability at full height.
Equipment Gallery
Description
The Genie GS-3246 is a robust electric scissor lift designed for high-efficiency work at height in both indoor and outdoor environments. With a maximum working height of 11.78 meters and a platform capacity of up to 318 kg, it’s ideal for construction, maintenance, and facility management applications.
Its compact width of 1.18 meters allows it to navigate tight spaces and standard doorways, while the non-marking solid tires and zero inside turning radius enhance maneuverability. The extended platform reaches 3.18 meters with a slide-out deck, providing ample space for tools and workers.
Key features include:
- Driveable at full height with a stable platform
- Electric E-Drive system for improved efficiency and runtime
- SmartLink control system for easy operation
- Fold-down guardrails for compact storage and transport
- Tilt and descent alarms for enhanced operator safety
- Optional Lithium-Ion battery for longer performance
Whether you're working on electrical installations, ceiling repairs, or HVAC servicing, the Genie GS-3246 delivers outstanding performance and reliability where vertical access is essential.
Technical Specifications
Working height max. - indoor
11.78 m
Working height max. - outdoor
8.71 m
Platform height max. - indoor
9.78 m
Platform height max. - outdoor
6.71 m
Platform height - stowed
1.32 m
Platform length - outside
2.26 m
Platform length - extended
3.18 m
Slide-out platform extension
0.91 m
Platform width - outside
1.18 m
Guardrail height
1.10 m
Toeboard height
15 cm
Machine height - stowed (rails up)
2.44 m
Machine height - stowed (rails down)
1.83 m
Machine length - stowed
2.44 m
Machine length - extended
3.33 m
Machine width
1.18 m
Wheelbase
1.85 m
Ground clearance (retracted)
12 cm
Ground clearance (deployed)
2.3 cm
Max. platform occupancy (in/out)
2 / 1
Lift capacity
318 kg
Lift capacity - extension deck
113 kg
Max. platform drive height
9.78 m
Drive speed - stowed
3.2 km/h
Drive speed - raised
0.8 km/h
Gradeability - stowed
25%
Turning radius (inside/outside)
0 / 2.29 m
Lifting speed (raise/lower)
53 / 34 sec
Tilt sensor activation
3° / 1.5°
Tires
38 × 13 cm
Power (FLA)
24V DC (4 × 6V 210Ah)
Power (Lithium-Ion)
24V DC (1 × 24V 90Ah)
Hydraulic tank capacity
15 L
Weight
2
Max. weight (with options)
2
Max. tire load
1
Tire contact pressure
1
Occupied floor pressure
10.23 kPa
Sound level (ground/platform)
< 70 dBA
Vibration
< 2.5 m/s²
