RENTAL DINGLI 0807AC ELECTRIC SCISSOR LIFT
Compact and efficient electric scissor lift with a working height of 7.8 meters, ideal for indoor maintenance, installation, and rental applications.

Equipment Gallery

Description

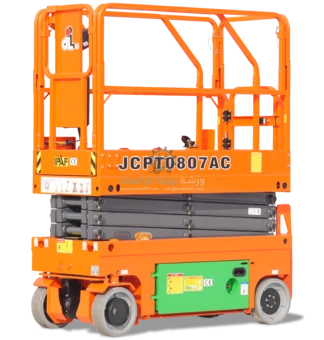

Rental Dingli 0807AC Electric Scissor Lift
The Dingli 0807AC Electric Scissor Lift is a compact and highly efficient aerial work platform designed for indoor use in warehouses, factories, shopping centers, and other commercial or industrial environments. With a maximum working height of 7.8 meters and a platform height of 5.8 meters, it provides safe and stable access for maintenance, installation, and inspection tasks.
This model supports a maximum load capacity of 230 kg and includes an extension deck with a 113 kg capacity, allowing workers to reach wider areas without repositioning the machine. It features a narrow width of just 0.76 meters, enabling easy access through standard doorways and tight spaces.
Powered by a 24V battery system, the Dingli 0807AC offers silent, zero-emission operation—ideal for indoor environments. The machine includes non-marking tires, a tight turning radius, and a gradeability of 25%, making it both maneuverable and reliable. Safety features include automatic pothole protection, tilt sensor, and emergency lowering system.
Whether you're a contractor, facility manager, or rental provider, the Dingli 0807AC is an excellent choice for elevated work in confined indoor areas.
Technical Specifications
Working Height
7.8 m
Platform Height
5.8 m
Lift Capacity
230 kg
Lift Capacity on Extension Deck
113 kg
Platform Size (L × W)
1.64 m × 0.76 m
Overall Length
1.86 m
Overall Width
0.76 m
Overall Height (Guardrails Up)
2.15 m
Overall Height (Guardrails Down)
1.75 m
Extension Deck Length
0.9 m
Ground Clearance (Stowed)
60 mm
Ground Clearance (Elevated)
19 mm
Turning Radius (Inside/Outside)
0 / 1.64 m
Drive Speed (Stowed)
4.0 km/h
Drive Speed (Elevated)
0.8 km/h
Gradeability
25%
Max Working Slope
"2° front/back
Tyres (Non-marking)
305 × 115 mm
Battery
24V/135Ah
Charger
24V/15A
Weight
"1
